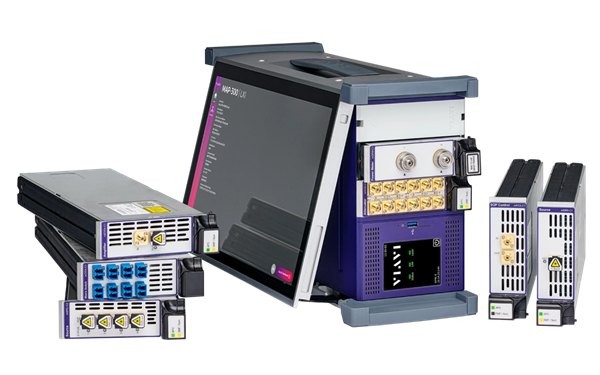

VIAVI MAP-300 Multiple Application Platform

The new MAP-300 builds upon the proven strengths of the MAP System while adding innovation where it matters most for our customers. Backwards compatible support for the installed automation base, combined with several new features, including an HTML-based GUI for multi-user environments, gives customers the capabilities they need to achieve their goals. We can’t wait to see what you will accomplish with the new MAP-300!

Highlights:

• On-board 3.5-inch touch screen provides quick access to connection and configuration settings.
• Graphic User Interface features intuitive dashboard with configurable widgets that correspond to each populated cassette.
• Multi-user access supported by web based interface.
• The industry’s largest selection of hot swappable modules for optical communications test and measurement in lab & manufacturing environments
• Backward compatible with MAP2xx series cassettes and remote-control support

Applications

• General purpose fiber-optic lab use
• Manufacturing test automation
• DWDM/WSS test
• Connectivity IL/RL
• Polarization scrambling and OSNR

Key Features:

• Available in rackmount, reverse-rackmount and benchtop mainframe configurations
• Eight-slot (MAP-380) and three-slot (MAP-330) configurations
• HTML-based graphical user interface (MAP-300 GUI)
• Field-replaceable controller includes an integrated 3.5- inch LCD touchscreen for network and system status
• Support for USB 3.0 port, 15.6 external monitor, and ethernet
• Optional GPIB, Ethernet port, USB and additional USB and trigger modules
• SCPI logical interface for automation programming, with remote programming supported via TCP/IP (LXI) over ethernet, GPIB and direct socket
• Multi-user capability
• Hot swappable modules
