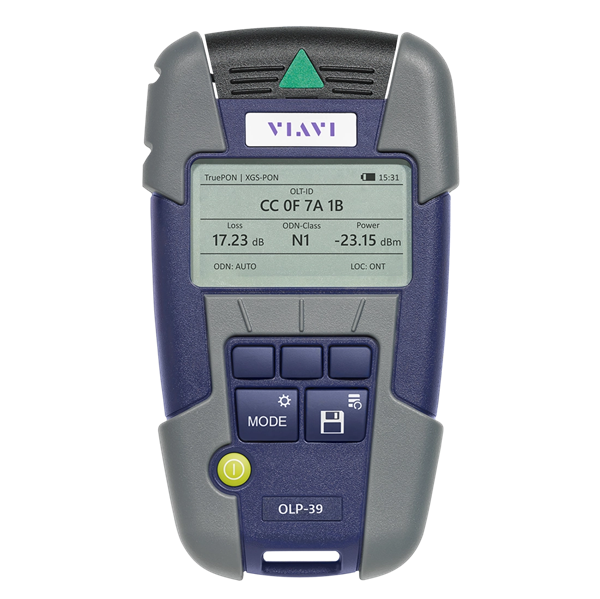

The new OLP-39 TruePON testers from VIAVI Solutions are the latest addition to the popular SmartPocket V2 family of pocket-sized test solutions. Designed for fiber technicians working in the Last-Mile of FTTH deployments, the new OLP-39 is the industry’s first wavelength selective Passive Optical Network (PON) power meter which has been enhanced with TruePON data analysis and enables simultaneous measurement of GPON and XGS-PON PON-ID.
Benefits
• Supports co-existence of G & XGS-PON for migration to 10G services
• TruePON analysis leverages PON-ID information to ensure more right first-time installations and to reduce fault finding times.
• By ensuring correct OLT port connectivity, users will reduce fault escalations, troubleshooting expenses and avoid install abandonments due to borderline installs
• Allows technicians to ensure whether the end-to-end optical loss of the PON is within specification before proceeding with an installation.
• Confirms when optical loss is out of specification by providing the information to support troubleshooting or to justify a trouble/fault ticket escalation.
• the patented ONT detection enables a 1:1 assignment of OLT port and ONT serial number
Application
• Measuring optical power levels for both G/E-PON and XGS-PON/10G-EPON services
• Detecting information on OLT-ID
• Detecting information on ONT serial number, ONT-ID, type and status
• Multi-service PON deployment and installs
• Network Build and Maintenance for FTTH
Key Features
• OLP-39 provides the industry’s first wavelength-selective power meter with PON-ID capabilities in a compact form factor that can easily fit in a technician’s pocket.
• TruePON Analysis and In-service Insertion Loss
• Detects the OLT-ID for both G-PON and XGS-PON by reading the PON-ID data
• Detects ODN class and enables in-service insertion loss measurement.
• Extracts specific data carried in the G-PON & XGS-PON PON-ID standardized by ITU-T G.984.3 Amendment 3. and ITU-T G.987.3 Amendment 1
• ONT Detection (patent pending)
• Identifies the serial number of the ONT to be measured
• Identifies the ONT type, ONT-ID and the ONT status
• Single test port connection for dual wavelength measurement
• Simultaneous power level measurements for both G/E-PON & XGS-PON/10G-EPON services
• Storage for over 1000 test results, PC download capability and Bluetooth Low Energy to sync results via Mobile Tech App to StrataSync cloud
